ASL Web UI

The ASL Web UI (package asl-web-ui) manages an AllStarLink 3 node server from a web browser. It looks and works like the Cockpit web console and covers nearly everything the text-based ASL3 Menu does: setting up nodes, tuning radio interfaces, managing Asterisk and Allmon3, backups, diagnostics and more.

What the ASL Web UI Does

• Node configuration: set up a new node, add more nodes, and change the call sign, duplex, password, radio interface and other common settings. SimpleUSB, USBRadio, hub (pseudo), USRP and Voter/RTCM nodes are supported, along with "customizations" for common commercial node hardware.
• Radio interface tuning: adjust receive and transmit levels for SimpleUSB and USBRadio interfaces with live meters, in place of the text tune menus.
• Access control: allow or block other nodes from connecting to yours.
• Asterisk management: start, stop and restart Asterisk, see registrations, change the AMI secret and IAX port, and use the Asterisk CLI in the browser.
• Allmon3 management: the nodes Allmon3 monitors, Allmon3 users, and the web settings.
• SA818 radio modules: program the radio module built into SHARI and similar node interfaces.
• Diagnostics: the node connectivity check (asl-node-auth-check), basic network checks, installed packages, software updates and the Asterisk log.
• Backups: create, download, upload and restore backups on the server and from the AllStarLink cloud backup server.
• HTTPS: a free Let's Encrypt certificate so browsers don't show security warnings.
• Networking: the server's network connections and, on the ASL3 appliance, the fallback Wi-Fi access point and 44Net Connect.
• Manual Config Edit: an editor with a syntax checker for the files in /etc/asterisk and /etc/allmon3, for experienced users.

The ASL Web UI works on the same files as the ASL3 Menu tools (asl-menu, node-setup, asl-backup-menu) and copes with files that were edited by hand, so you can switch between it, the menus and a text editor as you like.

Finding Your Way Around

Every page shares the same layout:

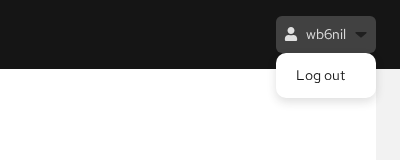

• The top bar shows the server's host name and the account you are logged in with. Click the account name to log out.



• The navigation column on the left lists the pages. On a phone or a narrow window, the menu button (☰) at the top left opens it.

• The page itself is on the right. Many pages have tabs across the top.

How Changes Are Made

The ASL Web UI never writes a configuration file without showing you exactly what will change. When you save, a Review window shows the lines removed (red) and added (green) in each file:

Click Apply to write the change or Cancel to go back. Before any file is written, a copy of it is kept, and the last 50 changes are saved in /var/lib/asl-web-ui/snapshots. Every change is also recorded, with who made it and when, in /var/lib/asl-web-ui/audit.jsonl.

Many changes take effect only when Asterisk restarts. When files have changed since Asterisk started, a banner appears at the top of every page listing them, with a Restart Asterisk link:

Some actions, such as restarting or stopping Asterisk, rebooting, restoring a backup and removing a node, ask for your password again if you last entered it more than ten minutes ago.

Sections of This Guide

• Installing and Logging In
• Setting Up Your First Node
• Overview
• Nodes and Tuning a Radio Interface
• Asterisk
• Allmon3
• Hardware (SA818)
• Diagnostics
• Backups
• HTTPS
• Network and 44Net Connect
• Manual Config Edit
